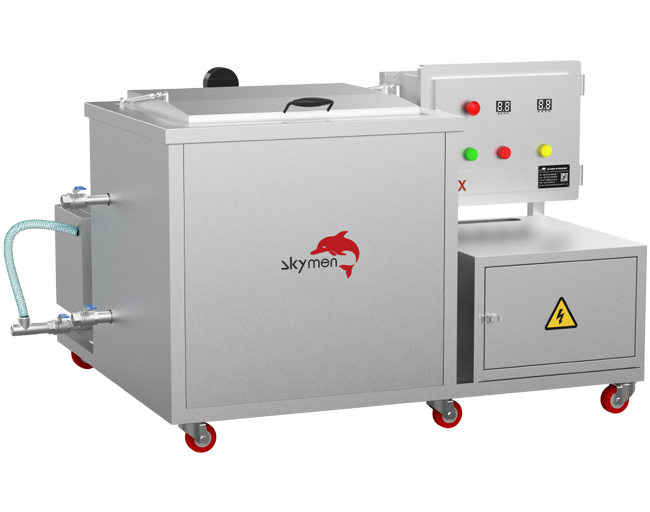

Explosion-proof Ultrasonic Cleaning Machine

Skymen Explosion-proof Ultrasonic Cleaning Machine is a cutting-edge solution engineered for industries handling flammable solvents. Designed to eliminate the risks of combustion and explosion, this machine integrates advanced cooling, explosion-proof systems, and a filtration mechanism. It ensures safe, efficient, and eco-friendly cleaning by maintaining temperatures below solvent flashpoints, isolating ignition sources, and recycling solvents for cost savings. Ideal for high-risk environments like automotive, aerospace, and chemical labs, this machine redefines safety and performance in ultrasonic cleaning.

Request Quote Download

Product Features

01

The cooling water circulates through a coil in the ultrasonic cleaning tank via a chiller, exchanging heat with the air and cleaning agent to maintain the cleaning agent's temperature at the ignition point of combustible gas, preventing ignition from heat exposure.
02

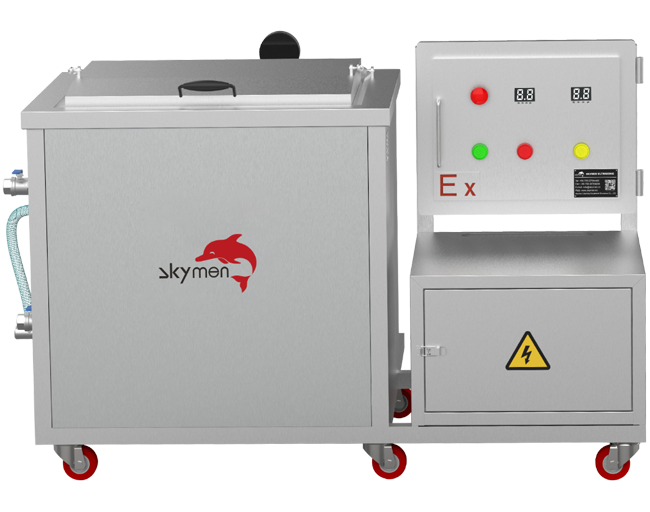

All control components are sealed within an explosion-proof electrical cabinet, isolating sparks and heat from flammable vapors. This design slashes combustion risks, making it the safest flammable solvent ultrasonic cleaner for volatile environments.
03

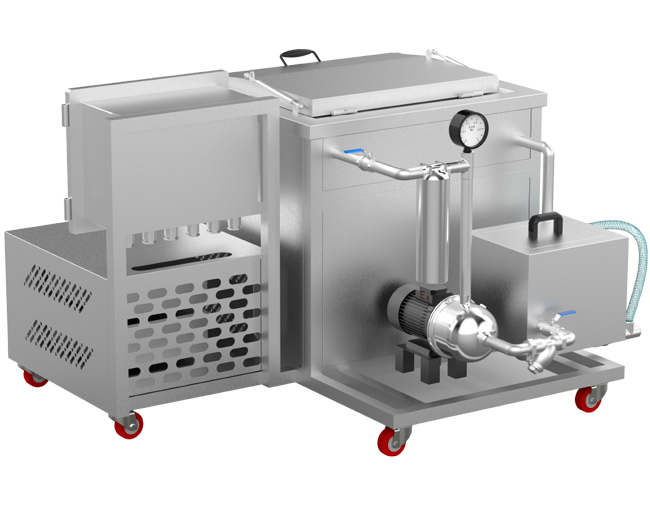

The integrated recycling system continuously filters contaminants from used solvents, allowing reuse up to 5x longer. Reduce waste, cut chemical costs by 40%, and meet sustainability goals without compromising cleaning power.

Technical Parameter

Model	Capacity (L)	Size of Every Tank (mm)	Ultrasonic Frequency (kHz)	Ultrasonic Power (W)	Heating Power (W)	Timer (MIN)	Generator
JTS-120BG	38	500300250	28/40	0-600W	1500	1-99	Built-in
JTS-180BG	53	500350300	28/40	0-900W	1500	1-99	Built-in
JTS-240BG	77	550400350	28/40	0-1200W	3000	1-99	Built-in
JTS-300BG	99	550450400	28/40	0-1500W	3000	1-99	Built-in
JTS-301BG	96	800300400	28/40	0-1500W	3000	1-99	Built-in
JTS-360BG	135	600500450	28/40	0-1800W	4500	1-99	Built-in
JTS-480BG	175	700500500	28/40	0-2400W	6000	1-99	Built-in
JTS-600BG	264	800600550	28/40	0-3000W	6000	1-99	Built-in
JTS-720BG	360	1000600600	28/40	0-3600W	9000	1-99	Built-in
JTS-840BG	420	1500700400	28/40	0-4200W	15000	1-99	Built-in
JTS-960BG	480	1200500800	28/40	0-4800W	15000	1-99	Built-in
JTS-1108BG	540	1000900600	28/40	0-5400W	18000	1-99	Built-in
JTS-1120BG	640	1000800800	28/40	0-6000W	21000	1-99	Built-in
JTS-1132BG	800	10001000800	28/40	0-6600W	24000	1-99	Built-in
JTS-1144BG	960	12001000800	28/40	0-7200W	27000	1-99	Built-in

Cleaning Effect

Traditional cleaning equipment struggles with flammable solvents, facing risks of overheating, frequent solvent replacement, and various safety hazards. Our explosion-proof ultrasonic cleaning machine revolutionizes industries such as automotive, electronics, aerospace, and more, enabling the safe use of alcohol-based solvents, acetone, and other flammable solvents.

bearing cleaning with skymen ultrasonic cleaner before and after
