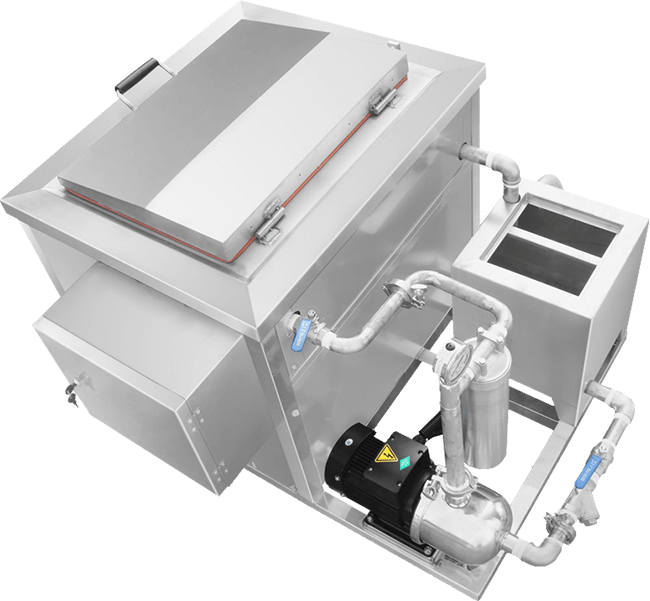

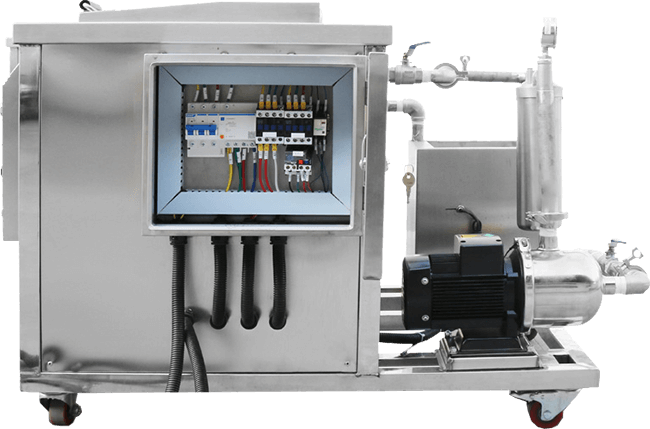

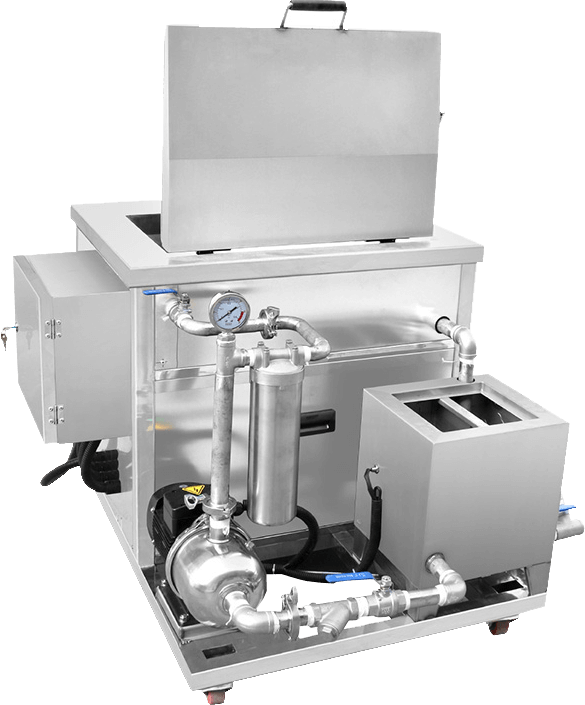

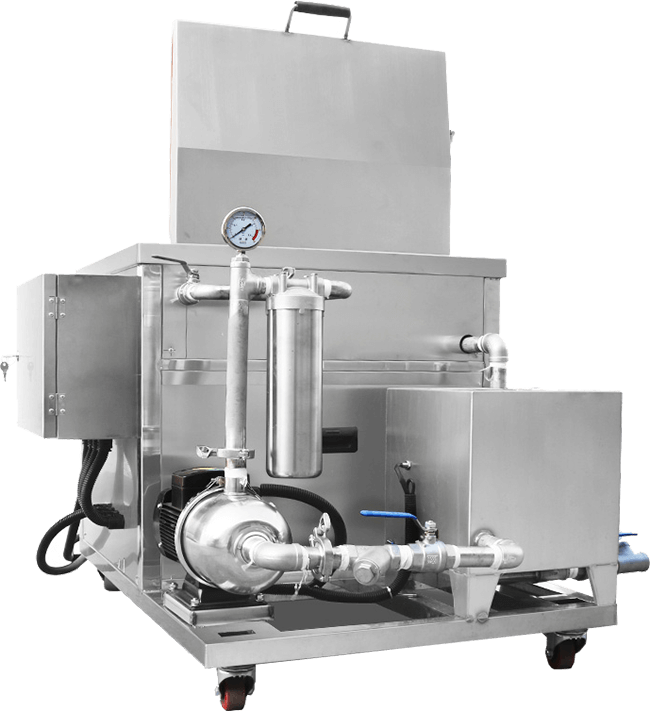

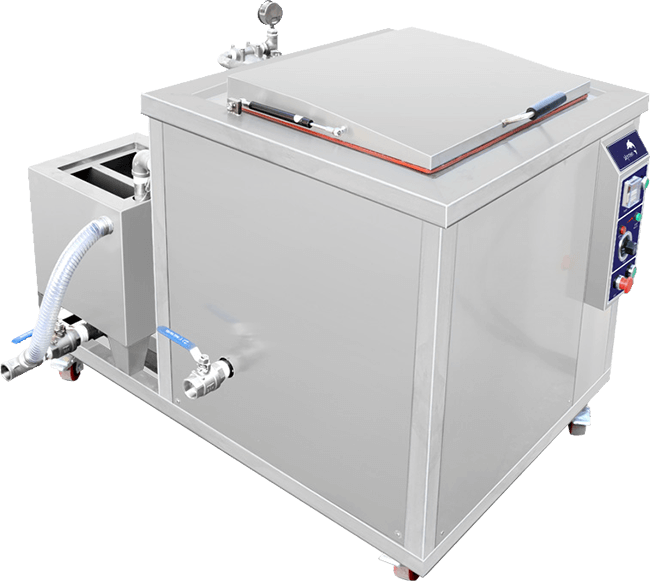

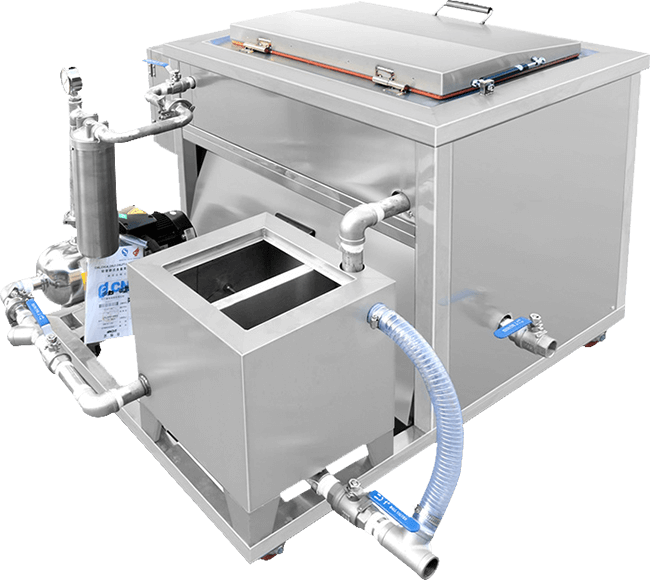

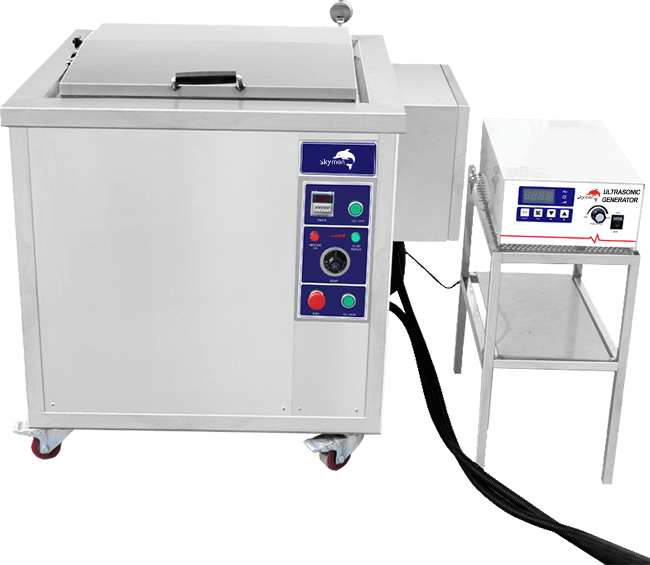

Single Tank with Filtration System

Ultrasonic cleaning machines with filtration systems are ideal for items heavily contaminated with oil and dust, offering cyclical cleaning that saves detergent, water, time, and labor.

Request Quote Download

Product Features

01

Strong power and high frequency for deep and thorough cleaning, good for cleaning blind hole.
02

Filter cleaning function, cycle cleaning, save time and labor.
03

2.0mm thick 304SUS materials, solid and durable.
04

Adjustable power and temperature, controlled by users flexibly.

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power (W)	Heating Power (W)	Frequency (kHz)	Filtration	Timer (Min/H)	Temperature (°c)
JP-120G	38	500300250	0-600	1500	28/40	YES	0-99H	Room temp-95
JP-180G	53	500350300	0-900	1500	28/40	YES	0-99H	Room temp-95
JP-240G	77	550400350	0-1200	3000	28/40	YES	0-99H	Room temp-95
JP-300G	99	550450400	0-1500	3000	28/40	YES	0-99H	Room temp-95
JP-301G	96	800300400	0-1500	3000	28/40	YES	0-99H	Room temp-95
JP-360G	135	600500450	0-1800	4500	28/40	YES	0-99H	Room temp-95
JP-480G	175	700500500	0-2400	6000	28/40	YES	0-99H	Room temp-95
JP-600G	264	800600550	0-3000	6000	28/40	YES	0-99H	Room temp-95
JP-720G	360	1000600600	0-3600	9000	28/40	YES	0-99H	Room temp-95
JP-840G	420	1500700400	0-4200	15000	28/40	YES	0-99H	Room temp-95
JP-960G	480	1200500800	0-4800	15000	28/40	YES	0-99H	Room temp-95
JP-1108G	540	1000900600	0-5400	18000	28/40	YES	0-99H	Room temp-95
JP-1120G	640	1000800800	0-6000	21000	28/40	YES	0-99H	Room temp-95
JP-1132G	800	10001000800	0-6600	24000	28/40	YES	0-99H	Room temp-95
JP-1144G	960	12001000800	0-7200	27000	28/40	YES	0-99H	Room temp-95
JP-1216G	1500	150010001000	0-10800	36000	28/40	YES	0-99H	Room temp-95

Related videos

Ultrasonic cleaning is widely used across various industries, including jewelry, medical, electronics, molding, automotive repair, diesel workshops, automotive manufacturing, scientific research labs, universities, dental clinics, eyewear shops, and hardware tool stores.

Cleaning Effect

Ultrasonic cleaning provides a fast and effective way to eliminate oil, grease, rust, glue, and other debris. It's particularly useful for reaching blind holes, narrow gaps, and difficult-to-access areas on different types of workpieces.

brake caliper cleaning with skymen ultrasonic cleaner before and after
