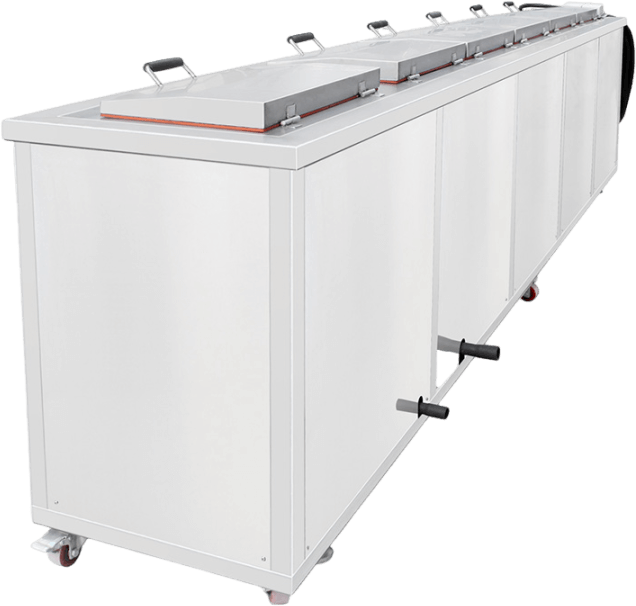

Six Tank Ultrasonic Cleaning Machine

1.Place the parts in the first tank for ultrasonic cleaning with a filtration system. The cleaning solution is tap water mixed with detergent, and the cleaning time is approximately 15 minutes.

2.After 15 minutes, transfer the parts to the second tank for rinsing to remove the cleaning agent and residual stains, ensuring a better cleaning result. Use only tap water, and soak the parts in the second tank for about 5 minutes.

3.After rinsing in the second tank, move the parts to the third tank for an additional rinse. Again, use only tap water, and soak the parts for another 5 minutes.

4.Finally, place the parts in the drying tank for 5-10 minutes to complete the cleaning process.

5.The fifth and subsequent cleaning tanks are designed for specialized applications, capable of performing cleaning, rinsing, drying, filtering, agitation, bubbling, lifting, spraying, explosion-proof protection, and cooling functions.

Request Quote Download

Product Features

01

Fast and thoroughly cleaning.
02

Saving labor, time, detergent.
03

OEM/ODM wholesale service.
04

No damage for cleaning the parts.
05

Removing dirt and dust easily.
06

With emergency stop switch.
07

SUS 304/SUS 316 tank material.
08

Filtration system to filter floating debris.
09

Powerful and durable branded pumps.
10

Free stainless steel cleaning basket.
11

With water inlet/outlet in suitable place.
12

With stainless steel basket.
13

Double/Multi frequency is available.

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power (KW)	Heating Power (KW)	Frequency (kHz)	Transducer（pcs）	Timer (H)	Heating Temp(°c)	Drying Temp(°c)
JTM-3036GH	38	500300250	1.8	6	28/40	36	0-99H	Room temp-95	Room temp-150
JTM-3054GH	53	500350300	2.7	6	28/40	54	0-99H	Room temp-95	Room temp-150
JTM-3072GH	77	550400350	3.6	12	28/40	72	0-99H	Room temp-95	Room temp-150
JTM-3090GH	99	550450400	4.5	12	28/40	90	0-99H	Room temp-95	Room temp-150
JTM-3108GH	135	600500450	5.4	18	28/40	108	0-99H	Room temp-95	Room temp-150
JTM-3144GH	175	700500500	7.2	24	28/40	144	0-99H	Room temp-95	Room temp-150
JTM-3180GH	264	800600550	9	24	28/40	180	0-99H	Room temp-95	Room temp-150
JTM-3216GH	360	1000600600	10.8	36	28/40	216	0-99H	Room temp-95	Room temp-150
JTM-3252GH	420	1500700400	12.6	60	28/40	252	0-99H	Room temp-95	Room temp-150
JTM-3288GH	480	1200500800	14.4	60	28/40	288	0-99H	Room temp-95	Room temp-150
JTM-3324GH	540	1000900600	16.2	72	28/40	324	0-99H	Room temp-95	Room temp-150
JTM-3360GH	640	1000800800	18	84	28/40	360	0-99H	Room temp-95	Room temp-150
JTM-3396GH	800	10001000800	19.8	96	28/40	396	0-99H	Room temp-95	Room temp-150
JTM-3432GH	960	12001000800	21.6	96	28/40	432	0-99H	Room temp-95	Room temp-150

Related videos

Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.

Cleaning Effect

Ultrasonic cleaning efficiently removes oil, grease, rust, and dirt, reaching blind holes and intricate spaces. It ensures thorough cleaning, saves time, and reduces manual labor, making it ideal for various industries like automotive, medical, and electronics.

plastic mold cleaning with skymen ultrasonic cleaner before and after
