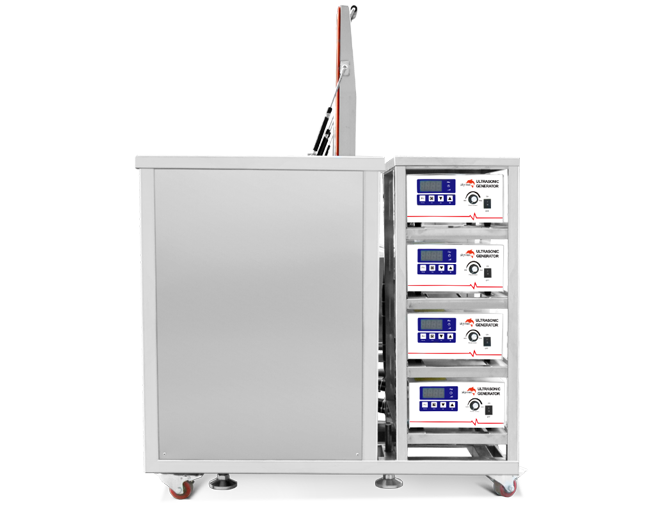

Ultrasonic cleaning + sparying + drying

1.Place the parts in the first tank for ultrasonic cleaning with a filtration system. The cleaning solution is tap water mixed with detergent, and the cleaning time is approximately 10-15 minutes.

2.After 15 minutes, transfer the parts to the second tank for spraying to remove the cleaning agent and any residual stains, enhancing the cleaning effect. The medium used is tap water only, with a spraying time of about 10-15 minutes.

3.For the final step, put the parts in the drying tank for about 5-10 minutes

Request Quote Download

Product Features

01

Fast and thoroughly cleaning.
02

Saving labor, time, detergent.
03

OEM/ODM wholesale service.
04

No damage for cleaning the parts.
05

Removing dirt and dust easily.
06

With emergency stop switch.
07

SUS 304/SUS 316 tank material.
08

Filtration system to filter floating debris.
09

Powerful and durable branded pumps.
10

Free stainless steel cleaning basket.
11

With water inlet/outlet in suitable place.
12

With stainless steel basket.
13

Double/Multi frequency is available.

Technical Parameter

Model	Capacity (L)	Tank Size (mm)	Ultrasonic Power (W)	Hetaing Power(W)	Drying Heating Power(W)	Frequency (kHz)	Timer (Min/H)	Temperature (°c)	Drying Temperature (°c)
JP-3012GPH	38	500300250	0-600	1500	3000	28/40	0-99MIN	Room temp-95	Room temp-150
JP-3018GPH	53	500350300	0-900	1500	3000	28/40	0-99MIN	Room temp-95	Room temp-150
JP-3024GPH	77	550400350	0-1200	3000	3000	28/40	0-99MIN	Room temp-95	Room temp-150
JP-3030GPH	99	550450400	0-1500	3000	4500	28/40	0-99MIN	Room temp-95	Room temp-150
JP-3031GPH	96	800300400	0-1500	3000	4500	28/40	0-99MIN	Room temp-95	Room temp-150
JP-3036GPH	135	600500450	0-1800	4500	4500	28/40	0-99H	Room temp-95	Room temp-150
JP-3048GPH	175	700500500	0-2400	6000	6000	28/40	0-99H	Room temp-95	Room temp-150
JP-3060GPH	264	800600550	0-3000	6000	6000	28/40	0-99H	Room temp-95	Room temp-150
JP-3072GPH	360	1000600600	0-3600	9000	6000	28/40	0-99H	Room temp-95	Room temp-150
JP-3084GPH	420	1500700400	0-4200	12000	6000	28/40	0-99H	Room temp-95	Room temp-150
JP-3096GPH	480	1200500800	0-4800	12000	9000	28/40	0-99H	Room temp-95	Room temp-150
JP-3108GPH	540	1000900600	0-5400	18000	9000	28/40	0-99H	Room temp-95	Room temp-150
JP-3120GPH	640	1000800800	0-6000	18000	9000	28/40	0-99H	Room temp-95	Room temp-150
JP-3132GPH	800	10001000800	0-6600	24000	12000	28/40	0-99H	Room temp-95	Room temp-150
JP-3144GPH	960	12001000800	0-7200	24000	12000	28/40	0-99H	Room temp-95	Room temp-150
JP-3216GPH	1500	150010001000	0-10800	30000	15000	28/40	0-99H	Room temp-95	Room temp-150

Related videos

Hardware tools shop,car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, ,Jewelry industry, medical industry, electronic factory, molding factory,

Cleaning Effect

Ultrasonic cleaning offers a quick and efficient solution for removing oil, grease, rust, glue, and other contaminants. It’s also highly effective at reaching blind holes, narrow slits, and hidden areas on workpieces, ensuring a thorough clean.

cleaning multiple grease fitting concentrator with skymen ultrasonic cleaner before and after
