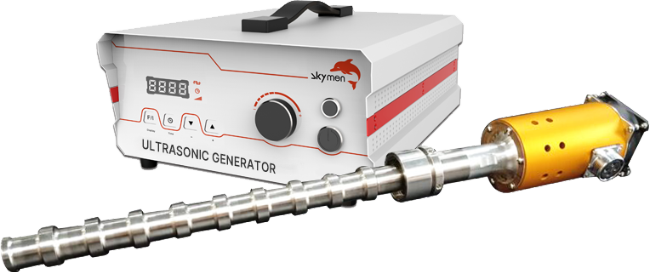

Energy concentrated Ultrasonic Transducer Bar

The ultrasonic transducer bar utilizes the radial vibration of the internal transducer to evenly emit ultrasonic waves around the bar.

These ultrasonic waves create acoustic cavitation between the solution and the sample, achieving purposes such as cleaning, extraction, chemical reactions, anti-scaling, and more.

Request Quote Download

Product Features

01

Flexible operation. The ultrasonic transducer bar can be freely placed in any position of the cleaning tank, and it occupies a small volume space.
02

Long service life and stable performance, sealed & waterproof.
03

Support ODM & OEM customization,provide professional solutions to meet your requirements.
04

Multiple uses. The ultrasonic transducer bar can be used for cleaning, emulsification, stirring, separation, homogenization, extraction, catalysis, deforming, etc.

Technical Parameter

Model	Frequency（kHz）	Length（mm）	Diameter（mm）	Ultrasonic power（W）	Transducer（pcs）
JM-1003	28/40	180	57	180	3
JM-1006	28/40	300	57	360	6
JM-1012	28/40	550	57	720	12
JM-1018	28/40	750	57	1080	18
JM-1024	28/40	1000	57	1440	24
JM-1036	28/40	1520	57	2160	36

Related videos

Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.

Cleaning Effect

Ultrasonic cleaning offers a fast and effective way to remove oil, grease, rust, glue, and other contaminants. It’s particularly adept at reaching blind holes, tight slits, and hidden areas on workpieces, delivering a deep and thorough clean.

clutch cleaning with skymen ultrasonic cleaner before and after
