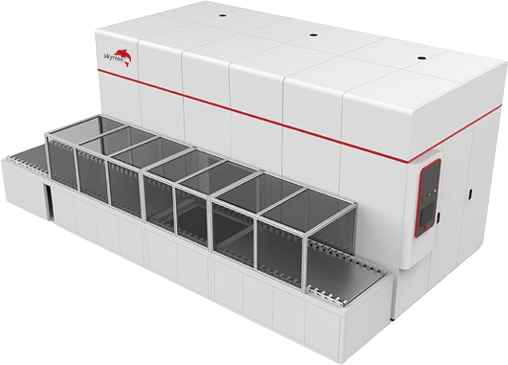

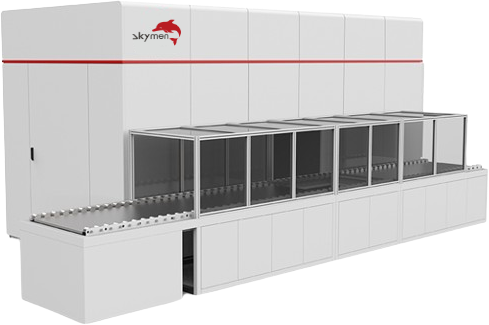

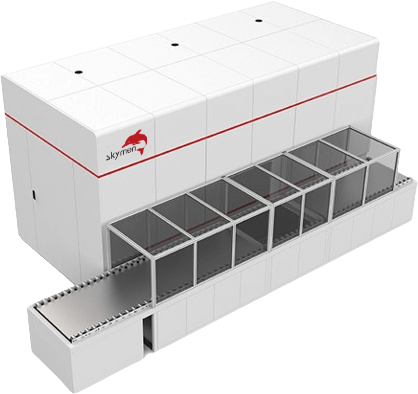

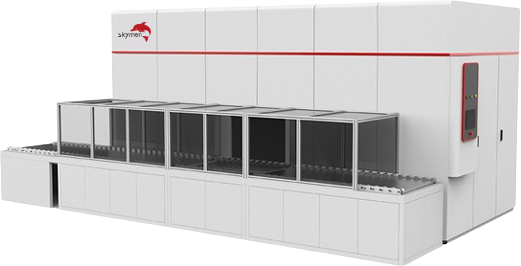

Single-station Vacuum Hydrocarbon Cleaning Equipment

The single-station vacuum cleaning machine is a highly intelligent, precision cleaning system specifically designed to meet the needs of customers' products. It features a main cleaning chamber and three separate solvent storage tanks. The cleaning process primarily utilizes ultrasonic cleaning, supported by additional methods like spraying and drying, to effectively remove dirt and enhance the cleanliness of the product, ensuring it meets the required standards.

Request Quote Download

Product Features

01

The whole cleaning process runs in a vacuum environment, which greatly reduces the loss of cleaning agent.
02

Vacuum ultrasonic cleaning, which has an obvious cleaning effect on work-pieces with blind holes.
03

Indirect heating with distilled water steam, no carbon deposits, no emissions.
04

Equipped with environmentally friendly and energy-saving system technology, which reduces the cost of machine use.
05

The equipment is ergonomically designed and has good opera ability.
06

The combination of different processes can be selected to quickly clean the work-piece.
07

Fully automatic intelligent operation, realizing remote terminal monitoring.

Technical Parameter

Model	Chamber size(mm)	Cleaning basket size(mm)	Ultrasonic Power(kw)	Ultrasonic frequency(kzh)	Heating Power(kw)	Circulation filtration accuracy(μm)	Trough thickness
JMB-1288SD	11001100900(H)	1000950400	14.4	40	72	50	≥10mm; Anti-negative pressure

Related videos

Mechanical precision hardware, optical, ship, automobile and motorcycle, petroleum and kerosene, photovoltaic, rail transit, aerospace, semiconductor, electronics, mobile phone, battery.

Cleaning Effect

Ultrasonic cleaning is a quick and efficient method for removing oil, grease, rust, glue, and other debris. It is particularly effective at reaching blind holes, narrow gaps, and concealed areas on workpieces, ensuring a thorough and deep clean.

cleaning-electronic-components-with-skymen-ultrasonic-cleaner-before-and-after
